Lower coil for Singer

[rdrahota]

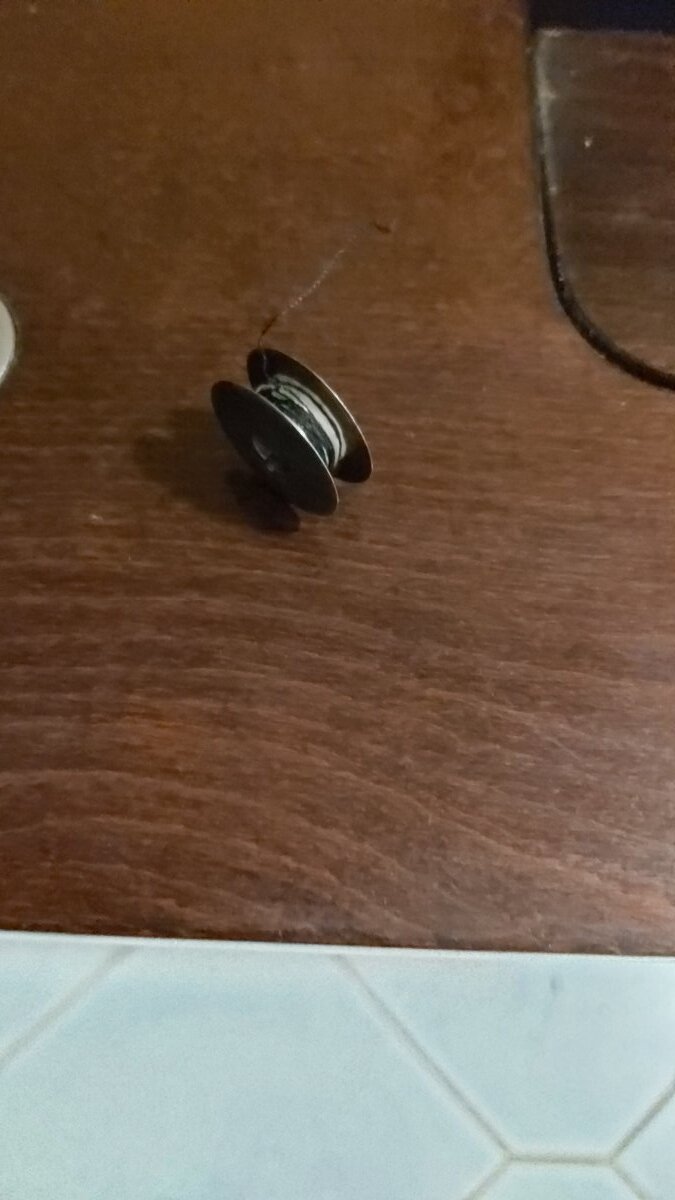

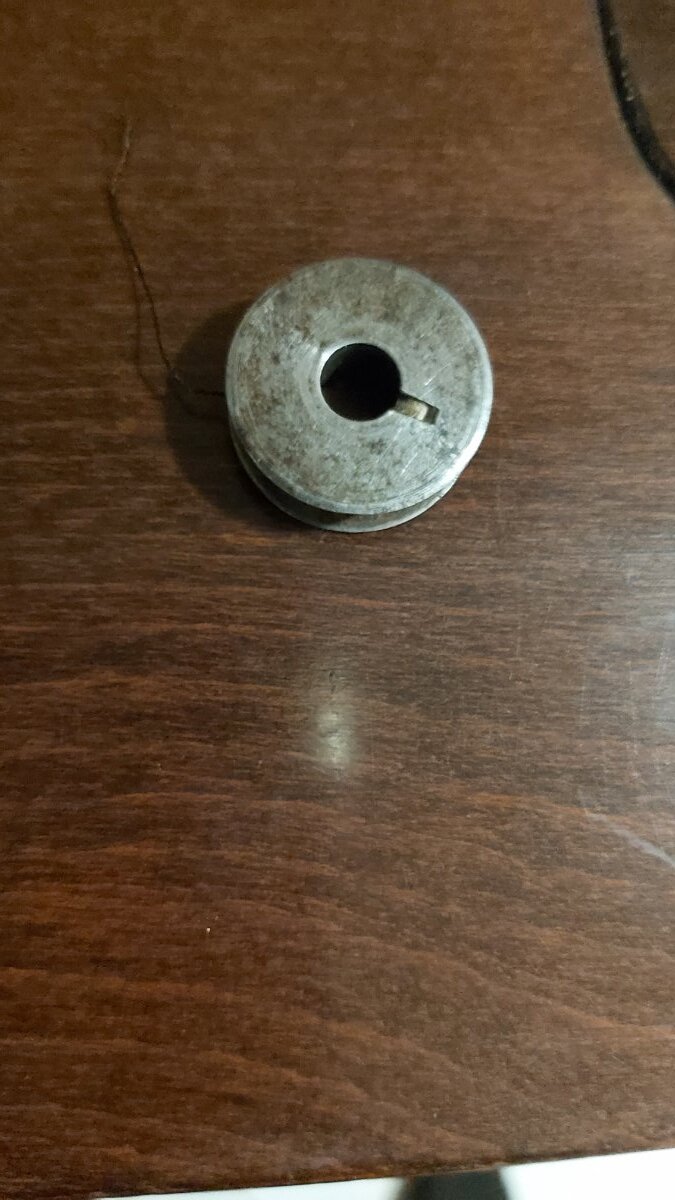

Hello, I dont speek German, so I Hope English is fine 😉 Does anybody know where to find lower coil for old Singer? Diametr is cca 20mm and height 7mm. I can't find it on internet in Czech republic...

Thank you for any advice or help..

Bearbeitet 21. Februar 2021 von rdrahota

[lea]

What you call "lower coil" is a bobbin in English and Spule in German _ something like this:

https://de.wikipedia.org/wiki/Spule_(Rolle)#/media/Datei:Sewing_machine_bobbins.jpg

Or do you mean anything else?

Which type (model) of old SInger machine do you own? This will certainly help to find the correct type of bobbin.

Regards, Lea

[Gypsy-Sun]

Pictures would be great as they help in case different labellings were used in different countries.

[rdrahota]

@lea Yes it is bobbin... Thank you for language improvement👍

Every bobbin I find is 1boit 10mm height, but this is only 7mm



[lea]

Is there a label on your machine that indicates the model and/or serial number?

[rdrahota]

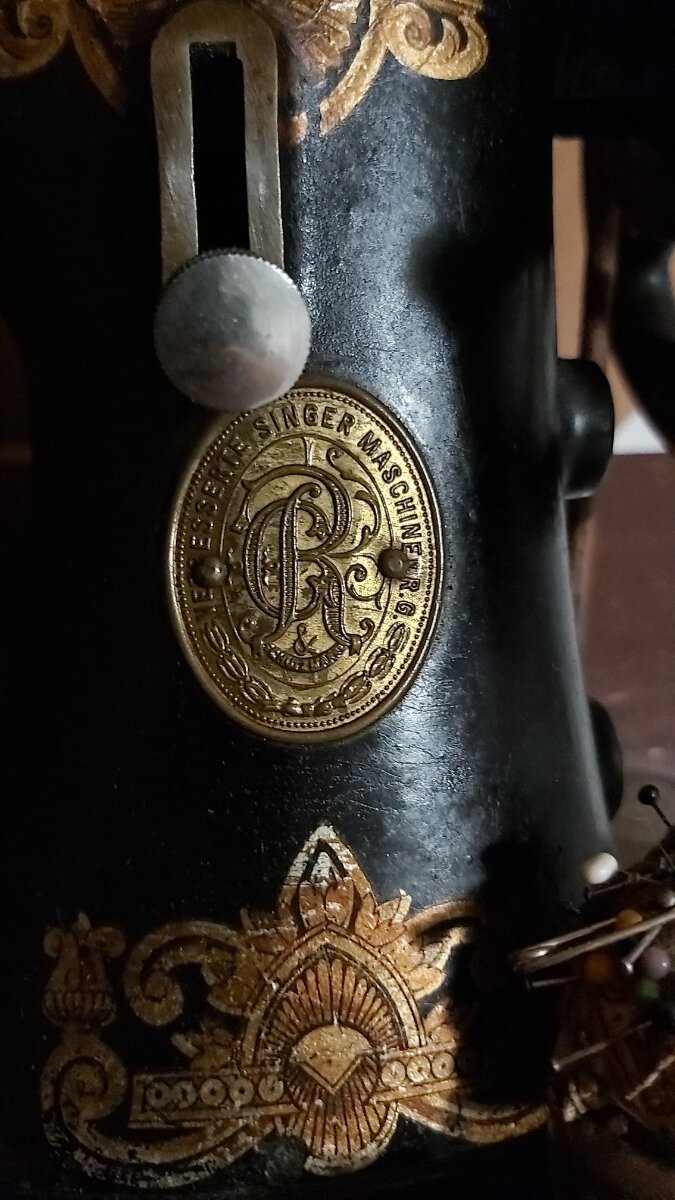

Serial no. is 377358 and type in 3rd photo... I think is the only identification I find on it...

[lea]

@det might be able to help you with this.

[det]

Hello,

that's not a Singer, but a Rast and Gasser machine from Austria.



Could you post a photo from the hook area beneath the ground plate?

[rdrahota]

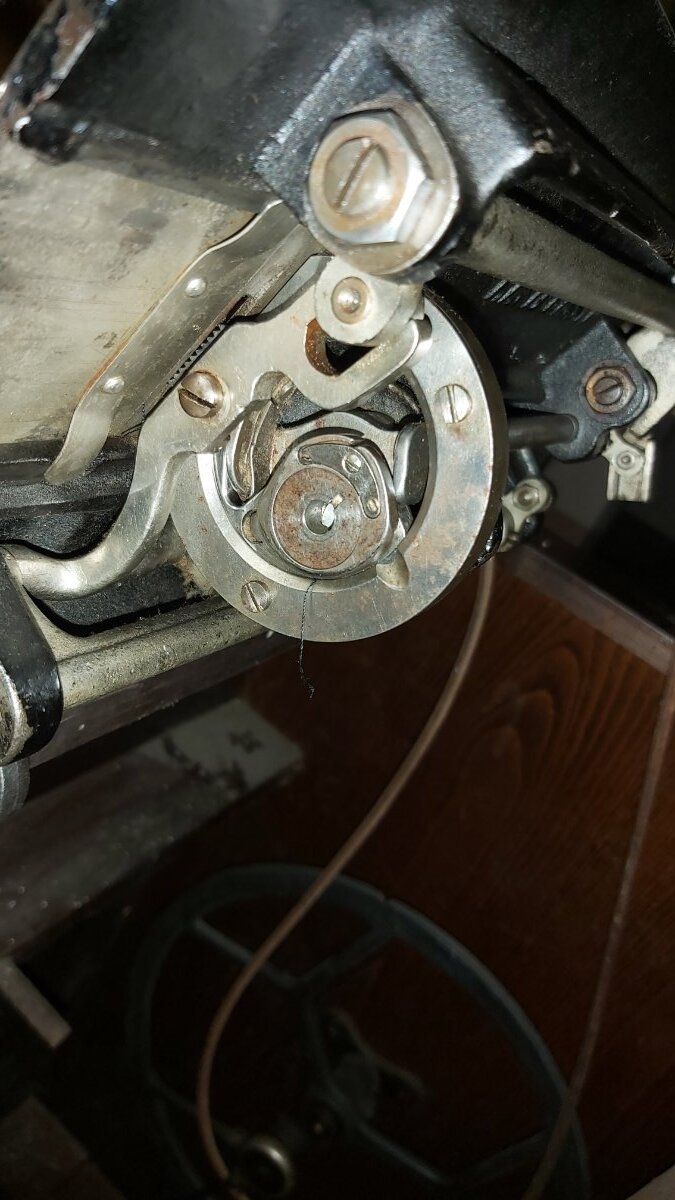

I Hope, this is the right area...first is open and Second closed... Thank you!

[det]

Thanks,

it's an old and rare machine. The type is called "Ringschiffchen" in German.



But i don't know where to get these bobbins.

[rdrahota]

Yes, it is from my grand other, I thing from beggining od 20th centry... It works fine, but I havo only oné bobbin... If I don't find a other, I will try 3D print... Thank you very much all

[lea]

This might (might!) be a similar machine:

https://www.naehmaschinenverzeichnis.de/verzeichnis-der-naehmaschinen/singer-bis-50er-jahre

Perhaps you can translate it with google translator.

The text states the following measurements  for the bobbin;

outer diameter 19,9 mm, inner diameter ca. 5,9 mm, height (middle) ca. 8,9 mm, height (outside margin) ca. 6,9 mm.



[rdrahota]

Yes, it seems the same!
